RHINO PLATFORM: Multi-Terrain Mobile Robot

The Rhino Platform is a rugged, versatile robotic solution engineered for challenging environments. With a robust tracked wheel system, it handles uneven terrains and ensures reliable performance in diverse applications, including payloads of up to 150 kg.

Brochure

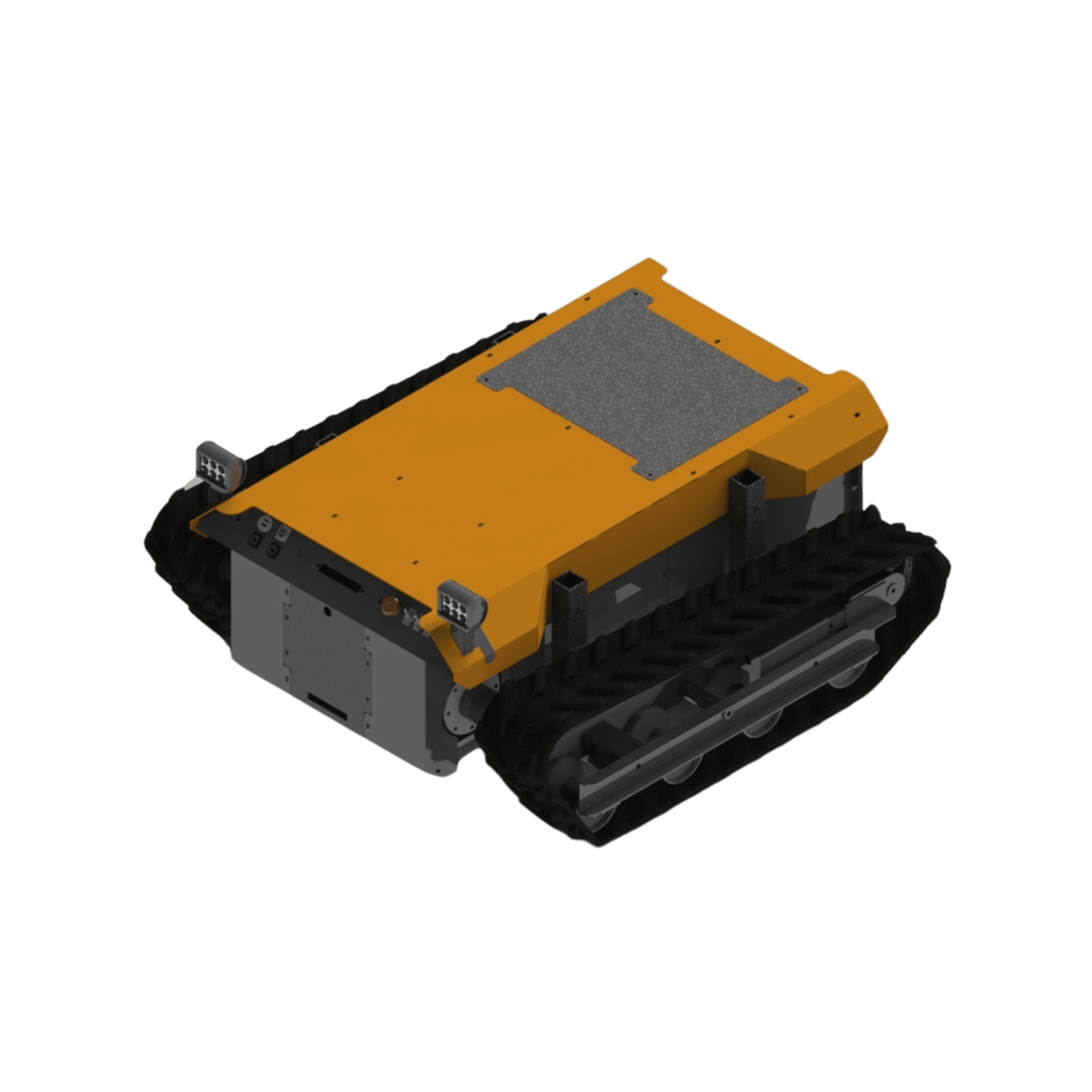

RHINO Platform Robot

Technical Specifications

SpecificationDetails
Robot PlatformTracked Wheel System
Total Weight180 kg
Max Payload150 kg
Wheel Drive2 motor-Differential
Max Speed0.5 m/s
Ground Clearance100 mm
Battery Lifespan8 hours
Climbing Ability< 30 Degrees
CommunicationCAN 2.0
Control ModeRadio Controller, Control Box
Front Camera170 FOV
Head Lamp12V LED
Brake Lamp12V LED

Performance

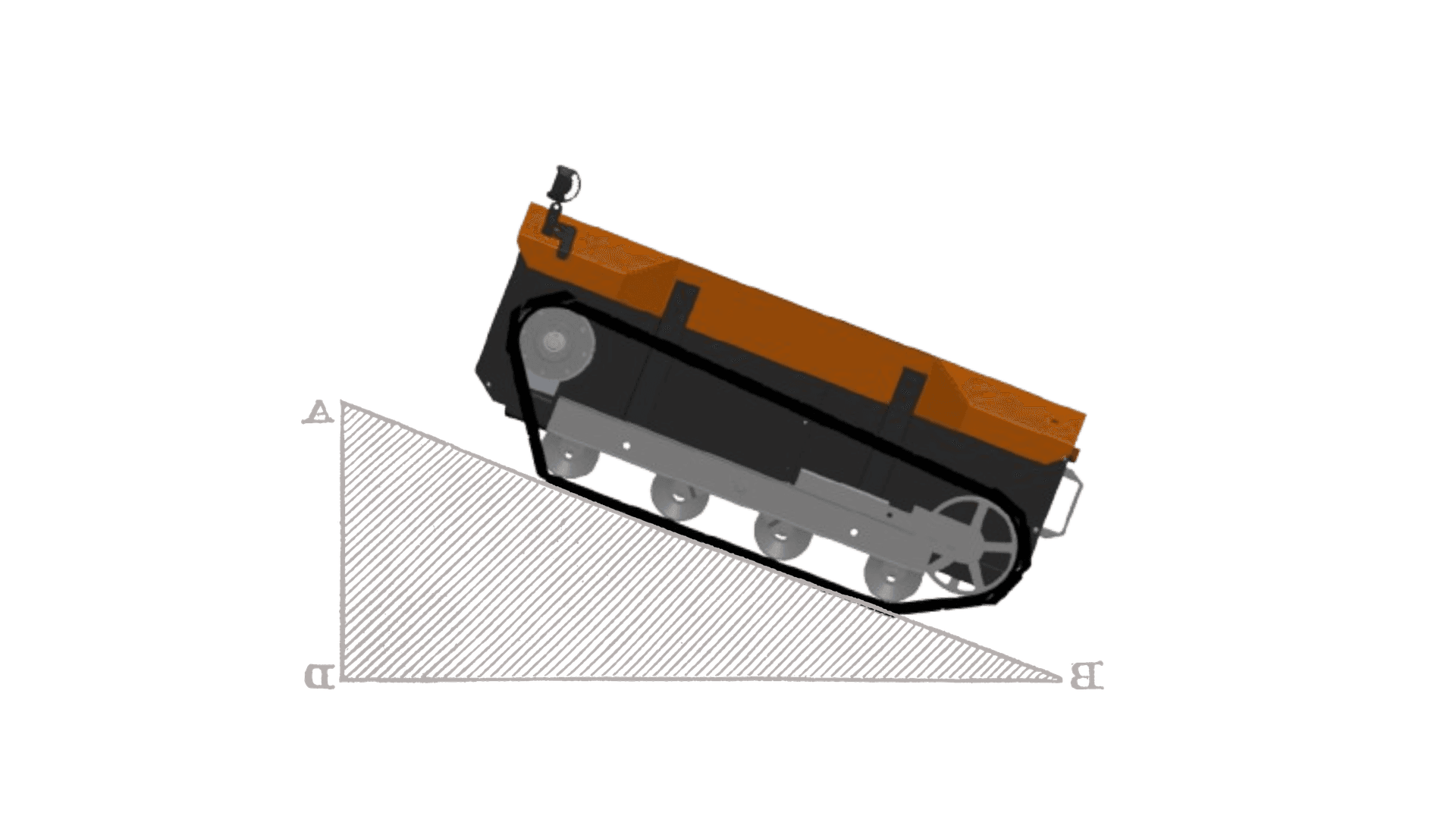

Robot Incline Performance
  • Max Speed: 0.5 m/s
  • Ground Clearance: 100mm
  • Climbing Ability: < 30 Degree

Modes of Control

Remote Control

Remote Control

Control Box

Control Box

Joystick

Joystick

Modular Design (Optional)

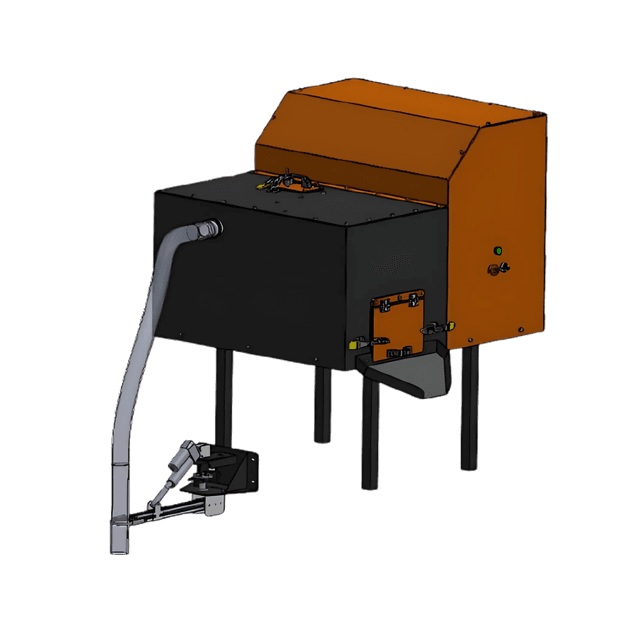

Loose Fruit Module

Loose Fruit Module

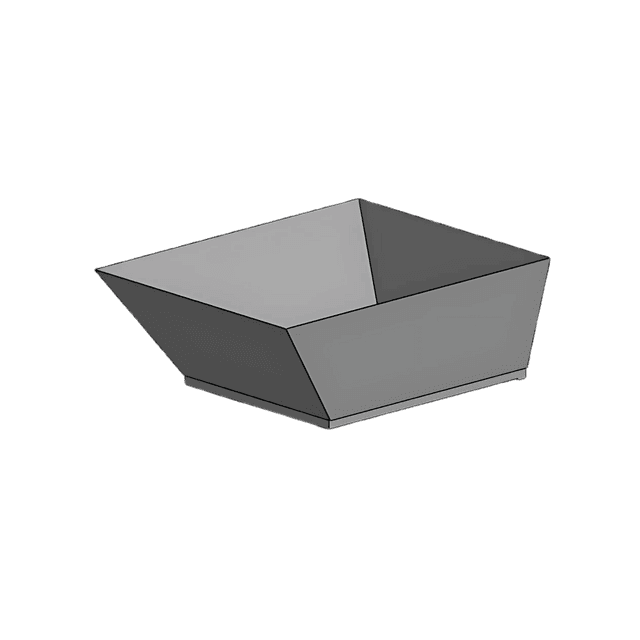

Fruit Loading Bucket

Fruit Loading Bucket

  • Fertilizer Sprayer
  • Rat Bait
  • Pesticide Sprayer

Ready for AI Integration

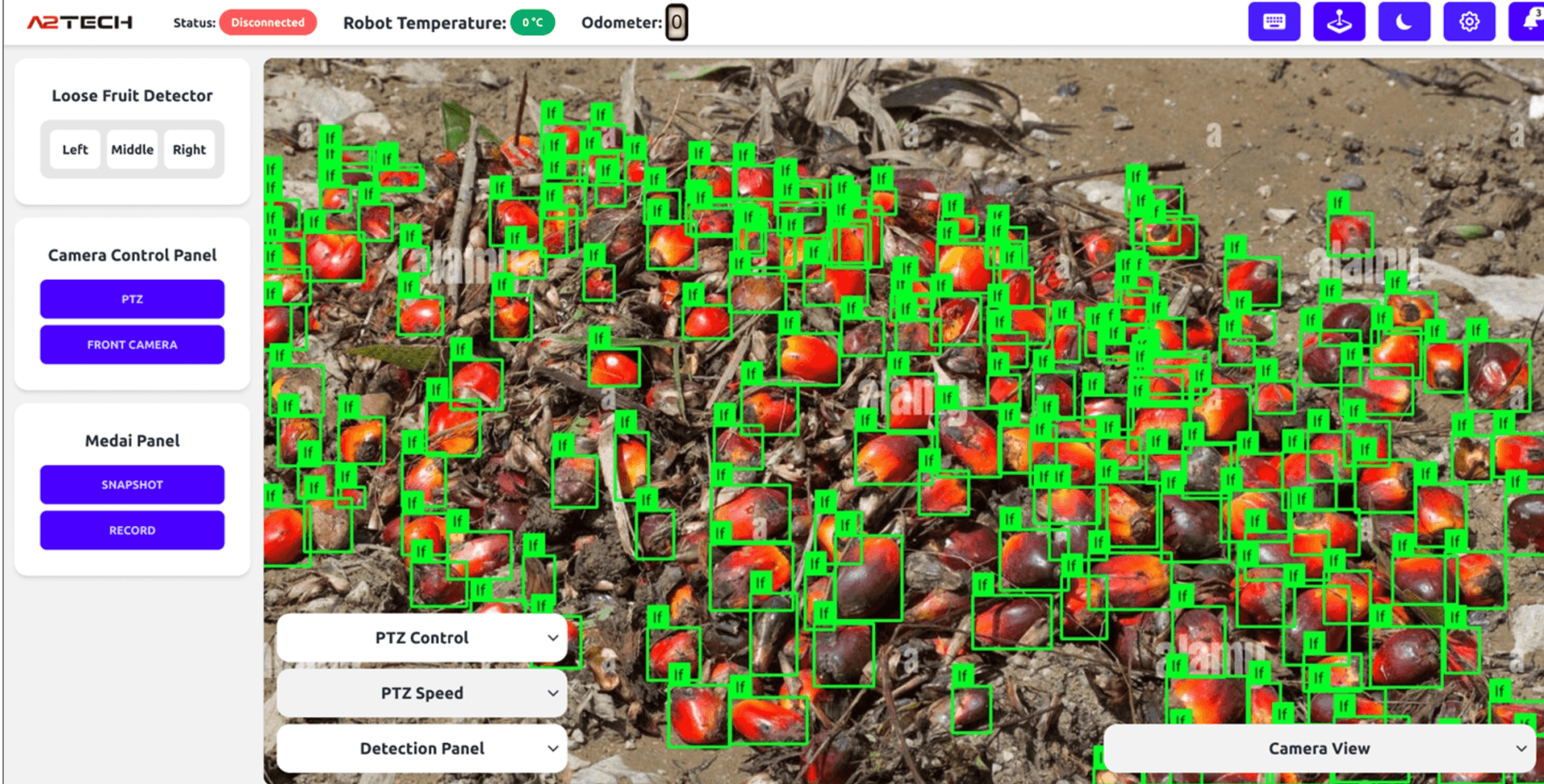

AI Detection

Demo Session

Rhino Platform Track Type in action during a demo session.

Our Product & Service Categories

Purchase

Purchase

Buy the Rhino-F robot for permanent use in your facility.

Lease

Lease

Lease the robot for temporary use on your harvesting projects.

Service

Additional Service

Our engineers will visit your site to provide maintenance and support for your robot.
