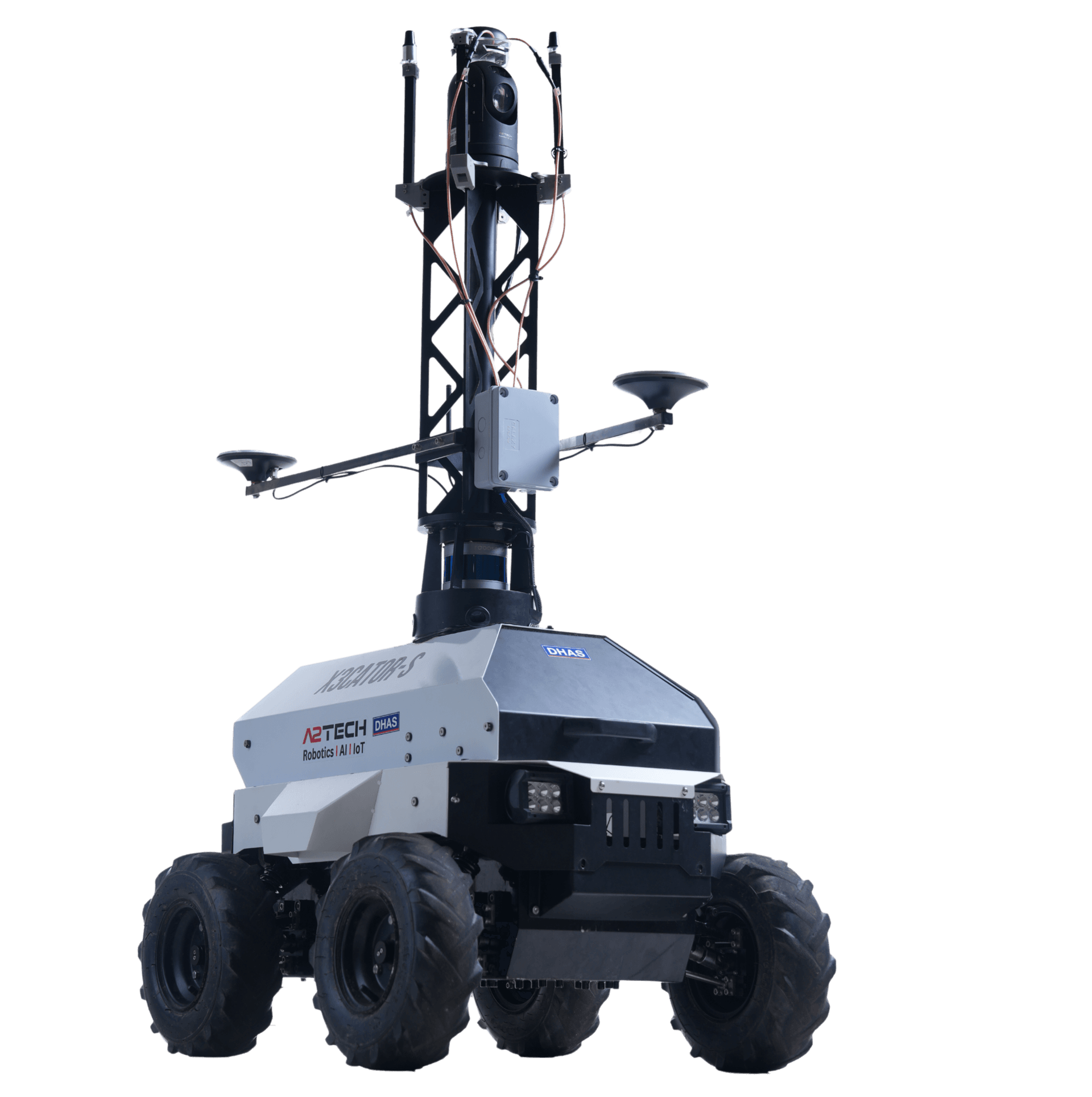

X3CATOR-S: Autonomous Surveillance Robot
The X3CATOR-S is a cutting-edge surveillance robot designed for early reconnaissance and monitoring across various environments. It excels in surveillance operations using AI capabilities to detect intruders and enhance safety.
Brochure
Surveillance Operation
The X3CATOR-S is an advanced surveillance system designed for security and monitoring in diverse environments. Equipped with cutting-edge technology, it provides high-accuracy detection and tracking capabilities, enabling effective security operations.
Features
3D Lidar for Environment Mapping

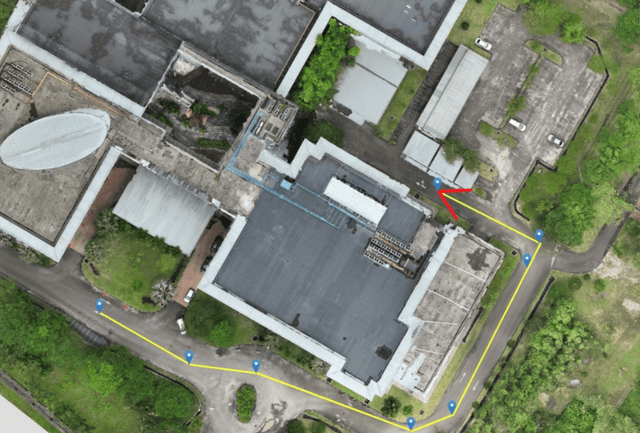

The lidar sensor maps the area for obstacle avoidance and autonomous patrol.

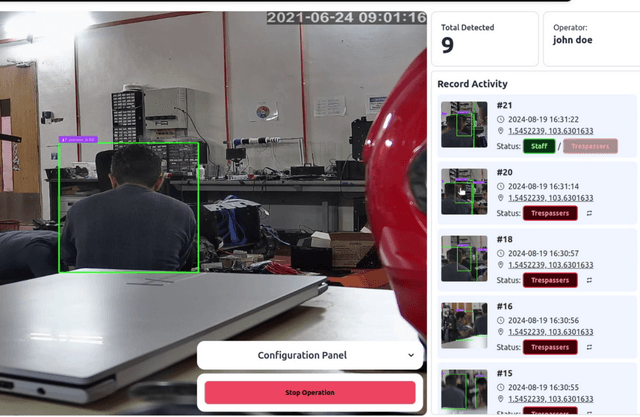

Intruder Identification
AI-powered detection identifies intruders based on camera feed.

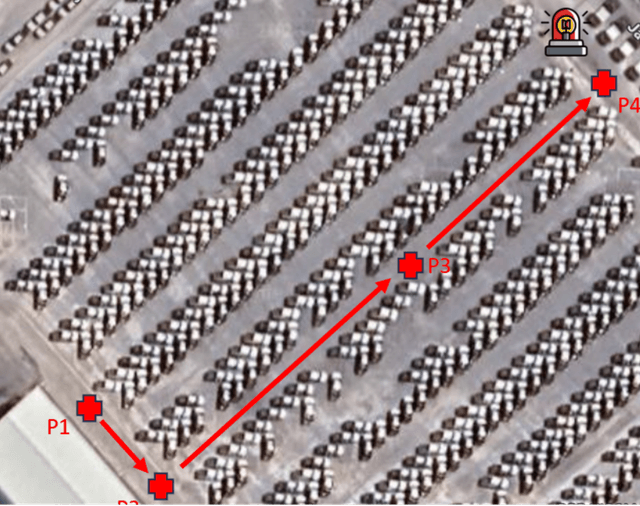

GPS RTK
Real-time positioning for tracking the robot autonomously.

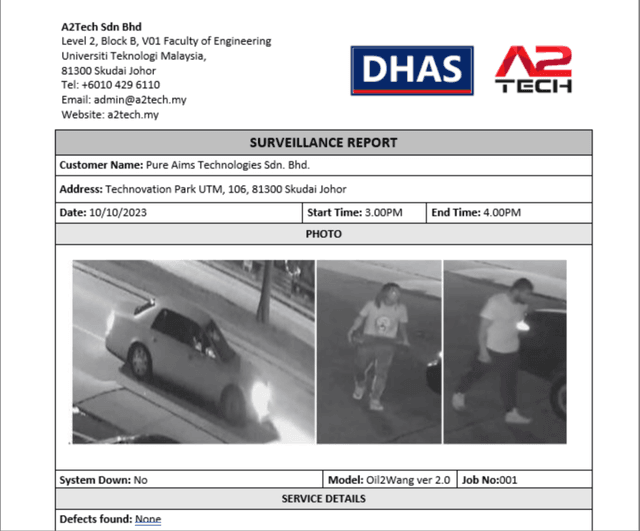

Automatic Reporting
Automatically generated reports after each surveillance session.
Demo Session
X3Cator-S in action during a demo session.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions | Width: 747 mm, Length: 944 mm, Height: 1754 mm |
| Power Supply | MOSFET-based power switches with stable power distribution for motors and sensors. |
| Sensors | 32-channel Lidar, Depth sensor, RTK, GNSS, IMU, GPS for precise navigation and obstacle detection. |
| Communication | 1.4 GHz radio (LOS: 10 km, NLOS: 1 km), RC control, mesh network for local communication. |
| Camera | PTZ Camera with Night Vision & Thermal Imaging |
| All-Terrain Mobility | Rugged wheels for mobility across varied terrains, ideal for complex environments. |
| Emergency Systems | Bumper-based emergency stop with limit switches to ensure safety during operation. |
Our Product & Service Categories
Purchase
Buy the Rhino-F robot for permanent use in your facility.
Lease
Lease the robot for temporary use on your harvesting projects.
Additional Service
Our engineers will visit your site to provide maintenance and support for your robot.
